Features

•

  Fast cycle time

  To be cleaned and dried within 120s.

•

  Deburring

  High pressure deburring and cleaning for important parts.

•

  Full range cleaning

  Different from the traditional transmission cleaning without blind angles.

•

  High flexibility

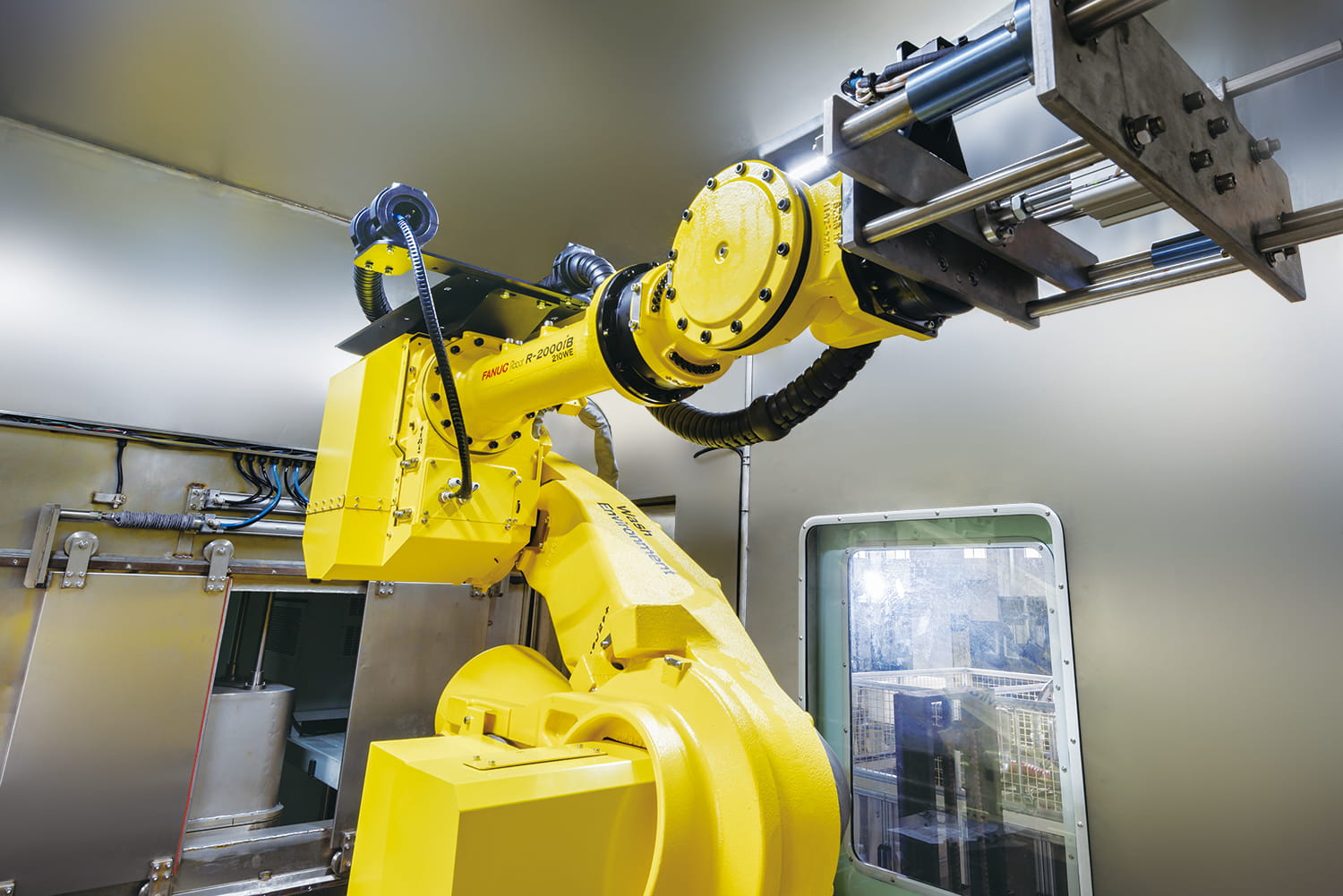

  The six-axis robot can be used to grasp and clean the parts. The program can be selected according to different workpieces, suitable for many kinds of workpiece.

•

  High efficiency

  Integrate surge cleaning, high pressure positioning cleaning, rinsing, blow-drying and vacuum drying.

Process flow

•

  Surge cleaning & low pressure spray

  The robot grabs the workpiece to the surge pool and performs low-pressure spray cleaning and surge cleaning on the surface of the workpiece, which can quickly remove the large residual metal particles in the workpiece. After the cleaning, it opens the electromagnetic valve to quickly discharge liquid for circulating filtration.

•

  High pressure positioning cleaning

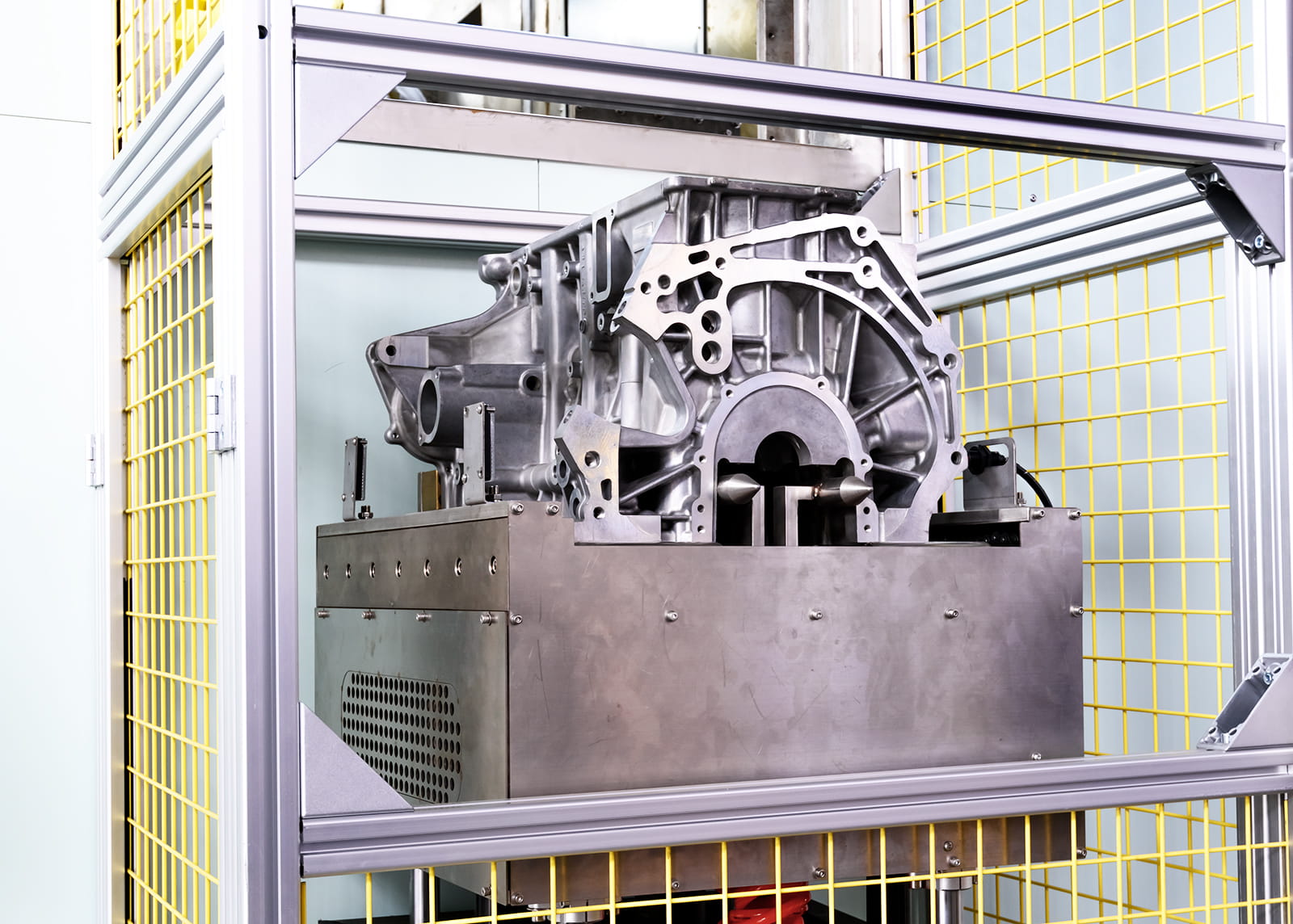

  The workpiece is grabbed and moved to the fixed high-pressure nozzle to make the high pressure (deburring) cleaning to the important hole site. The cleaning pressure is up to 50MPa.

•

  Anti-rust rinsing

  After the cleaning, the workpiece is grabbed to the rinse tank for shaking rinsing and rust protection to the workpiece when required.

•

  Vacuum drying & cooling

  After the cleaning, the workpiece is grabbed to the rinse tank for shaking rinsing and rust protection to the workpiece when required.

•

  Compressed air purge & air knife purge

  After the purge, the workpiece enters automatically into the vacuum drying chamber through the roller, and the workpiece is quickly dried at a lower temperature with negative pressure. The dried workpiece is quickly cooled to room temperature with a fan, so that the air tightness testing and packaging can be carried out.

Main technical parameters
